Intellikran PLC

INTRODUCTION

  • Programmable for upto 2 WiFi connection
  • WiFi APN for offline programming of the controller
  • SD card slot with 16GB card slot for data logs and settings
  • Quick data and setting restore
  • Lifetime data storage on Firebase backend
  • Customization possible for other backend such as AWS, Google IOT core over MQTT at additional cost
  • Remote monitoring of real time values such as load, angles, operation info, outputs and error
  • Admin panel for crane supplier and user panel for crane user
  • Remote programing with password protected access control
  • Programming , Faults, Loading history, Maintenance and load test logs
  • Data analytics and reporting (Under Development)

APPLICATIONS

  1. OVERHEAD CRANES
  2. GANTRY CRANES
  3. JIB CRANES
  4. CONTAINER HANDLING CRANES
  5. STEEL MILL CRANES
  6. ALUMINIUM SMELTER CRANES
pdf Click here for more information

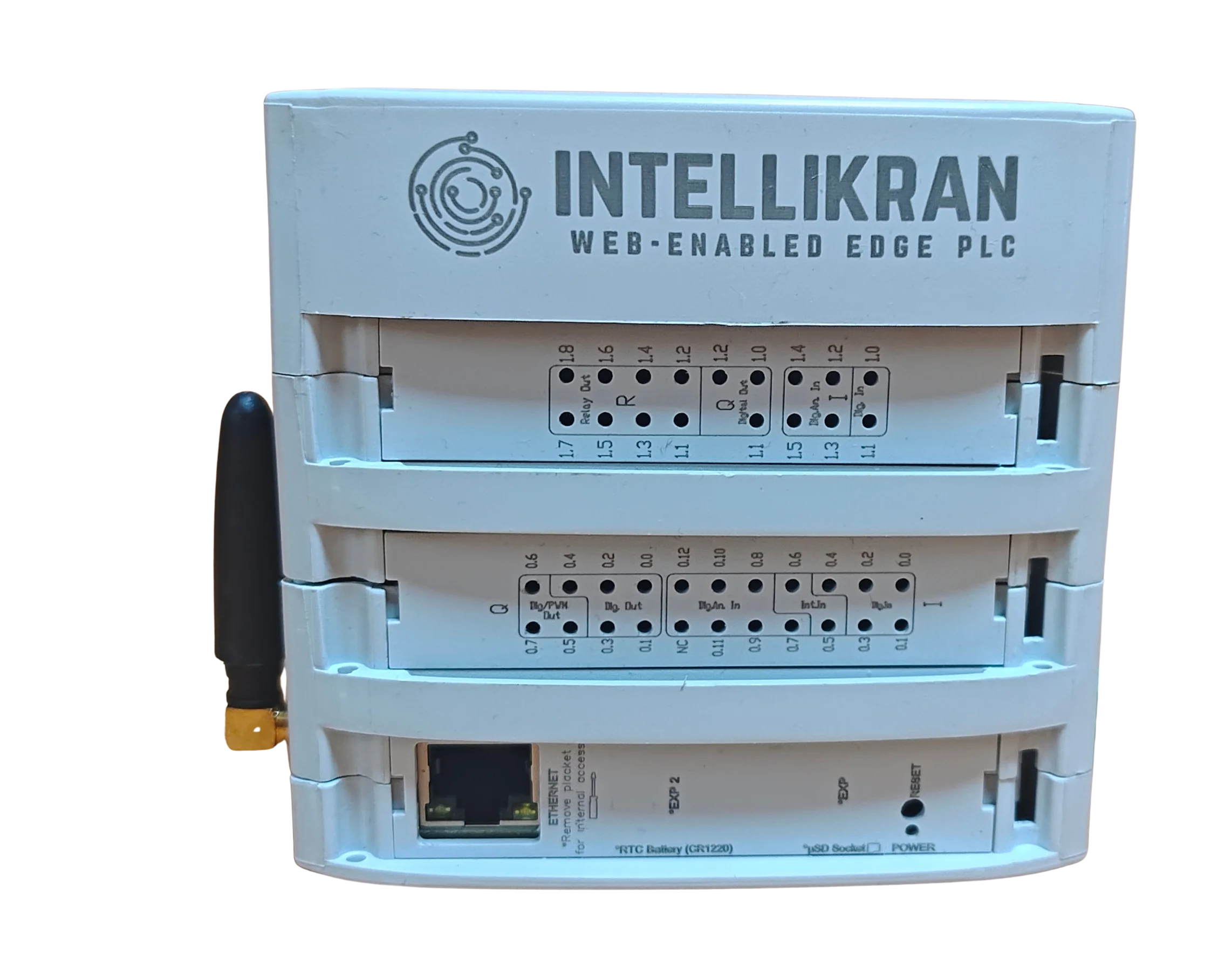

Intellikran_2
Intellikran IoT PLC Series

Choose Your Crane Automation Platform

Three IoT PLC controllers built for crane monitoring, load management and multi-sensor automation — scaled to match your operation’s complexity.

Intellikran Mini IoT PLC

Compact dual-core controller with built-in WiFi and BLE — ideal for lightweight crane monitoring and basic control.

Total I/O
14 (9 in / 5 out)
Digital Inputs
7 Digital
Analog Inputs
2 Analog-Digital
Digital Outputs
4 Digital
Relay Outputs
1 Relay
Communications
Ethernet, WiFi, BLE, RS485, I2C
Optional Modules
NB-IoT, 4G, LoRa, GPRS
Supply Voltage
12–24 VDC
Operating Temp
-20°C to 60°C

Intellikran Mid IoT PLC

Versatile mid-range controller with expanded I/O for multi-sensor crane monitoring.

Total I/O
21 (13 in / 8 out)
Digital Inputs
7 isolated (2 with interrupts)
Analog Inputs
6 Analog-Digital
Digital Outputs
5 isolated
Analog Outputs
3 Digital/PWM/Analog
Communications
Ethernet, RS485, RS232, SPI, I2C, RTC
Supply Voltage
12–24 VDC
Operating Temp
-20°C to 60°C

Intellikran Max IoT PLC

Full-featured platform for complex multi-crane automation, load monitoring, and advanced data acquisition.

Total I/O
38 (19 in / 19 out)
Digital Inputs
9 isolated (4 with interrupts)
Analog Inputs
10 Analog-Digital
Relay Outputs
8 Relay
Digital/Analog Outputs
5 isolated + 6 PWM/Analog
Communications
Ethernet, RS485, RS232, 2× Serial, SPI, I2C, RTC
Supply Voltage
12–24 VDC
Operating Temp
-20°C to 60°C
```
